Did you get the Xiaomi Mi A3 (codenamed laurel_sprout) smartphone? Then this guide will be useful to you. If you have bricked your device, lost your pattern lock details or are not able to verify your Google account after the hard reset, then you can bypass it quickly using this guide.
You can easily get the ISP PinOUT connection of the Xiaomi Mi A3 by following the full guide below along with images. By using the ISP PinOUT, you can easily restore the stock ROM, bypass FRP lock or reset user data on your device via UFi Box. In this guide, we will also guide on how to reboot into 9008 EDL Mode.
Xiaomi Mi A3 Overview
The Mi A3 features a 6.1-inch HD+ OLED display with 720×1560 pixels resolution having a 19.5:9 aspect ratio. It’s protected by Corning Gorilla Glass 5 with a dot drop notch. This device is powered by a 2.0GHz octa-core Qualcomm Snapdragon 665 chipset with 4GB of RAM. The storage is 64GB inbuilt which can be expandable up to 256GB via a MicroSD card.
The device runs on the Android 9.0 Pie Stock UI out-of-the-box. It packs a non-removable Li-Po 4,030 mAh battery with Qualcomm Quick Charge 3.0 fast charging support. Most importantly, it has an in-display Fingerprint sensor and AI Face Unlock feature.
Xiaomi Mi A-series devices always offer great camera quality like any affordable flagship killer camera. This device packs a 48MP primary camera (f/1.79), a secondary 8MP camera (f/2.2), and a third 2MP camera. The rear camera setup has autofocus and an LED flash as well. While the front features a 32MP selfie camera with an f/2.0 aperture lens along with AI modes.
In terms of the connectivity options, it includes Wi-Fi 802.11 a/b/g/n/ac, GPS, Bluetooth 5.0, IR Blaster, USB Type-C port, FM Radio, 3G/4G LTE, etc. Sensors on the phone include an accelerometer, ambient light, gyro, proximity, and fingerprint sensor. The Xiaomi Mi A3 measures 153.48×71.85×8.50 mm and weighs 173.80 grams. It’s available in three colors such as Not Just Blue, More Than White, and Kind of Gray color.
What is ISP PinOUT?
ISP or In-system programming also known as in-circuit serial programming (ICSP) for hardware that has a cross-reference of pins or contacts. By shorting the pins together, you can power or signal the logic board (motherboard) of an electronic device such as a mobile, computer. You will find the IS Pinout connection on the logic board of your device. Therefore, you will need to remove the back panel of the handset and follow the below image to locate the pinout.

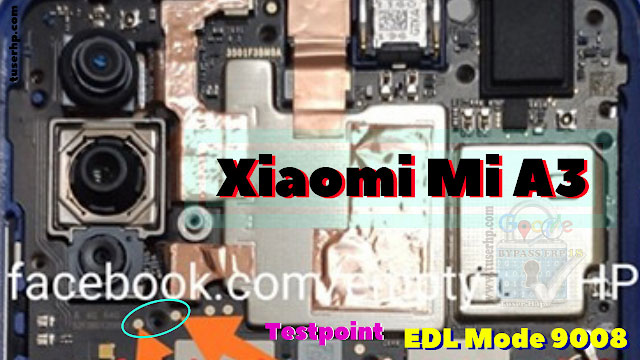

Mi A3 ISP Pinout Image:
How to Enter EDL Mode on Mi A3 (laurel_sprout)
Follow this instruction carefully to boot your device into EDL Mode (aka Emergency DownLoad Mode)
Method 1: Using ADB
- Download ADB and Fastboot Tool and extract it in your PC (C:/ Drive)
- Connect your device to your PC
- Open the adb command and enter the command
.\adb reboot edl
Method 2: Using Fastboot
- Download ADB and Fastboot Tool and extract it in your PC (C:/ Drive)
- Boot your device into bootloader
- Open the command window on your PC on the same folder extracted (ADB and Fastboot Tool)
- now enter the command
.\fastboot oem edl
Method 3: By Hardware Test Points / Restore Your device
- Download the QDLoader driver
- Find the EDL PinOUT/Test Point on your device (refer image above to find the test point)
- To enter EDL mode, you need to use a metal tweezer or a conductive metal wire to short the points.
- Once you are done, connect your device to PC using USB cable
- This way, your device will enter EDL mode. Now you can open the QFil or QPST Tool to flash the firmware and restore your device.
How to Bypass FRP lock on Mi A3 using ISP Pinout
Follow this method to bypass the FRP or Google verification on Mi A3 (laurel_sprout) using ISP pinout method
Required Downloads
Pre-Requirements:
- This guide is for Mi A3 variant only.
- You will need a Windows PC/Laptop and a USB cable.
Instructions
Well, ‘FRP’ known for the term “Factory Reset Protection.” It’s a security measure taken by Google for Android platforms and devices running on the Android 5.1 Lollipop or above version. This functionality gets activated once you sign in to a Google Account on your Android device. And once it is activated, it will prevent you from using the phone until you enter the previous Google Account Credentials. It will remain the same as well, even after doing the factory data reset.
- Open the back panel of the device at first.
- Connect the wire with the correct ISP Pinout.
- Then connect the ISP Pinout to the UFi Box and connect your device via USB cable to the PC.
- Go to the Device Manager on your PC.
- You will see your device in the list > run the UFi Box and locate the scatter file.
- Go to the user Partition / Special Task and click on Reset FRP on the UFI Box.
- You’re done.
Steps to Hard Reset Mi A3 (Bypass Pattern Lock)
- Remove the back panel of the Mi A3 and connect the wire to the ISP Pinout.
- Next, connect the correct ISP Pinout to the UFi Box.
- Connect your Mi A3 to the PC via a USB cable.
- Head over to the PC and open Device Manager.
- If your device is located there, run the UFi Box.
- Locate the scatter file > go to the Partition / Special Task on the UFI Box.
- Click on Factory Reset.
- Enjoy!
That’s it, guys. We hope this guide was helpful to you in order to bypass the FRP Lock or perform a factory reset on your Mi A3 (laurel_sprout) handset. If you’ve any queries, let us know in the comments below.
