How To Unlock Bootloader On Asus Zenfone Lite L1 (ZA551KL)

Are you here to unlock bootloader on Zenfone Lite L1? if yes, then you are in the right place. Well, Today in this guide we will show you how to unlock...

Abd Razaaq

Last updated on March 28, 2019

Abd Razaaq

Author

I'm a Tech Content Writer and Full-Time blogger. Since I love Android and Google's device, I started my career in writing for Android OS and their features. This led me to start "GetDroidTips". I have completed Master of Business Administration at Mangalore University, Karnataka.

Are you here to unlock bootloader on Zenfone Lite L1? if yes, then you are in the right place. Well, Today in this guide we will show you how to unlock Bootloader on Asus Zenfone Lite L1 (codenamed x00r_5 Model: ZA551KL). To flash or root and even install custom ROM you need to unlock the bootloader on your device.

Now you can unlock bootloader easily by following this simple guide. Official Bootloader Unlock for Asus Zenfone Lite L1 (ZA551KL) will also void the device warranty. So if you planning to Unlock Bootloader On Asus Zenfone Lite L1, then it’s always better to wait until your warranty gets over. In case if you have unlocked the bootloader, then you can always relock the bootloader on your device anytime.

How To Unlock Bootloader On Asus Zenfone Lite L1 (ZA551KL)

Now you can unlock bootloader easily by following this simple tutorial to Unlock Bootloader on Asus Zenfone Lite L1 (ZA551KL). Official Bootloader Unlock for Asus Zenfone Lite L1 (ZA551KL) will also void the device warranty. So if you planning to unlock bootloader on Asus Zenfone Lite L1 (ZA551KL), then it’s always better to wait until your warranty gets over. In case if you have unlocked bootloader, then you can always re-lock the bootloader on your device anytime.

What is Unlock Bootloader?

A Bootloader is a code which runs when we turn on our device. This code initializes some hardware and then loads the kernel and ramdisk, and gets the boot process going. So this process is known as Bootloader. The same concept applies to all the technical stuff such as Laptop, PC, Smartphones and any such device. Every Android OEM manufacturers lock the bootloader even though it is an Open Source. So if you want to try any CUSTOM ROM, it is impossible to load the CUSTOM ROM without the Unlock Bootloader. So Manufacturer made a policy of making the smartphone with Unlocked Bootloader will void the warranty. They want you to stick with the Stock ROM. Unlock Bootloader allows you to Root your Android smartphone, Flash TWRP and Custom ROM in a simple easy method.

By Unlocking the bootloader, your warranty can void. So take your own risk. We are at GetDroidTips will not be responsible for any bricking/damage to your phone while/after installing this ROM.

Pre-Requisites:

To Unlock Bootloader On Asus Zenfone Lite L1 (ZA551KL), you need a laptop or PC.
Charge the Asus Zenfone Lite L1 to a sufficient battery level to avoid any sudden shutdowns during the process.
We strongly recommend you to take a complete full backup of your personal data, including the internal storage. The phone will be formatted, so be prepared for it. You can also follow our Android backup guide for the same.
You need a USB cable to connect your phone to PC.

Required Files on your PC:

Download Bootloader Unlock Tool App
You need to download ADB and Fastboot Tools to your PC and Extract it [For Unofficial Method]
Download Asus USB Drivers

First method: Unlock bootloader using official Unlock App

First of all, Go to Bootloader Unlock Tool and download the bootloader unlock app.
Now select the OS: Android
Now in the utilities section, you will find the Unlock Device APP for Unlock bootloader. Download the app.
Now move the downloaded app to your phone and install it.
To Unlock the bootloader, follow the instructions given in the app.
That’s it! Your device bootloader will be unlocked successfully.

2nd method: Unlock bootloader using fastboot method [unconfirmed]

First of all, you need to download all the required files.
Now enable the USB Debugging on your phone.
Now extract the downloaded ADB Fastboot tools to a new folder “ADB Fastboot tools” (or any name you like.)
Open the CMD Window (Command Window) on your PC from the ADB Fastboot folder by pressing and holding Shift + Right mouse click.
You can now connect your phone to PC using USB Cable.
Next step is to boot your phone to bootloader/fastboot by either by following the below two methods. (you can try any of the methods)
1st Method —-> First Turn off your phone and wait for 4-5 second after the screen goes off. Press and hold Power and Volume Up buttons together until you see anything on the screen. That’s it.
2nd Method —–> In the same CMD window, you can enter this command: (for this method you need to connect your phone to PC using USB Cable)
```
adb reboot-bootloader
```
Now obtain the Unlock key, enter the command given below in the command window:
```
echo > key.txt
```
Now Unlock the bootloader by entering the command
```
fastboot oem get_unlock_key key.txt
```
That’s it! You have Unlocked Bootloader on Asus Zenfone Lite L1 ZA551KL. Enjoy!
Now reboot your bootloader again to confirm whether your bootloader has been unlocked. To check, enter the command
```
fastboot reboot-bootloader
```
It will show, Unlocked. Now you can boot your phone by either by entering the command given below or by just pressing and holding the power key for few seconds.
```
fastboot reboot
```
Now you can enjoy the power to install TWRP Recovery or any mods on your Zenfone Lite L1.

I hope this guide was helpful to unlock the bootloader on Asus Zenfone Lite L1.

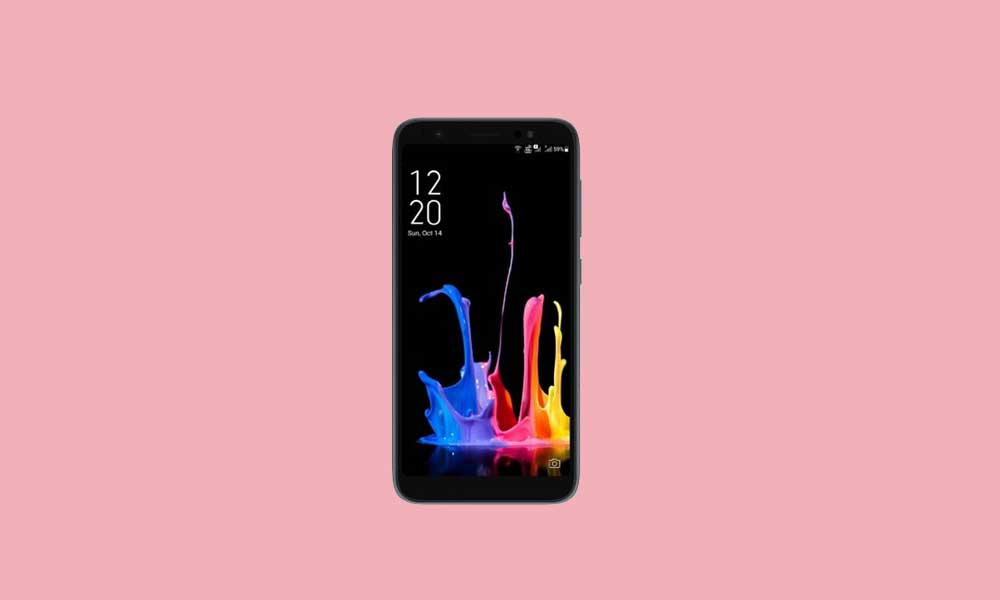

ASUS Zenfone Lite L1 Specifications:

ASUS ZenFone Lite L1 features a 5.45-inches IPS LCD display with a screen resolution of 720 x 1440 pixels. It is powered by 1.4 GHz Quad-core Qualcomm MSM8937 Snapdragon 430 processor clubbed with 2GB of RAM and brings Adreno 505 graphics. The phone packs 16 GB of internal storage and supports external memory card with microSD, up to 512 GB. As far as the cameras are concerned, the ZenFone Lite L1 (ZA551KL) packs a 13MP camera on the rear and a 5 MP front shooter for selfies. The ASUS ZenFone Lite L1 (ZA551KL) runs Android 8.0 Oreo and is backed by a 3000 mAh.
