How to Install TWRP Recovery on S-Tell M511 and root it easily

Installing TWRP Recovery and Rooting your Android device now becomes quite easy and useful too. Here in this guide, we will share with you the steps on how to...

Abd Razaaq

Last updated on February 21, 2026

Abd Razaaq

Author

I'm a Tech Content Writer and Full-Time blogger. Since I love Android and Google's device, I started my career in writing for Android OS and their features. This led me to start "GetDroidTips". I have completed Master of Business Administration at Mangalore University, Karnataka.

Installing TWRP Recovery and Rooting your Android device now becomes quite easy and useful too. Here in this guide, we will share with you the steps on how to install TWRP Recovery and Root S-Tell M511 easily. The TWRP Recovery installation process will also require unlocking the device bootloader. So, we will share how to Unlock the S-Tell M511 Bootloader guide as well.

The smartphone OEMs don’t provide an unlocked bootloader for some security reasons. Whereas unlocking the device bootloader will come in handy to install custom recovery as well. The Custom Recovery tools will be like TWRP, CWM, etc. Here we will use the TWRP Recovery. By installing the TWRP Recovery, you can easily flash firmware files, install root, take a full backup, and more.

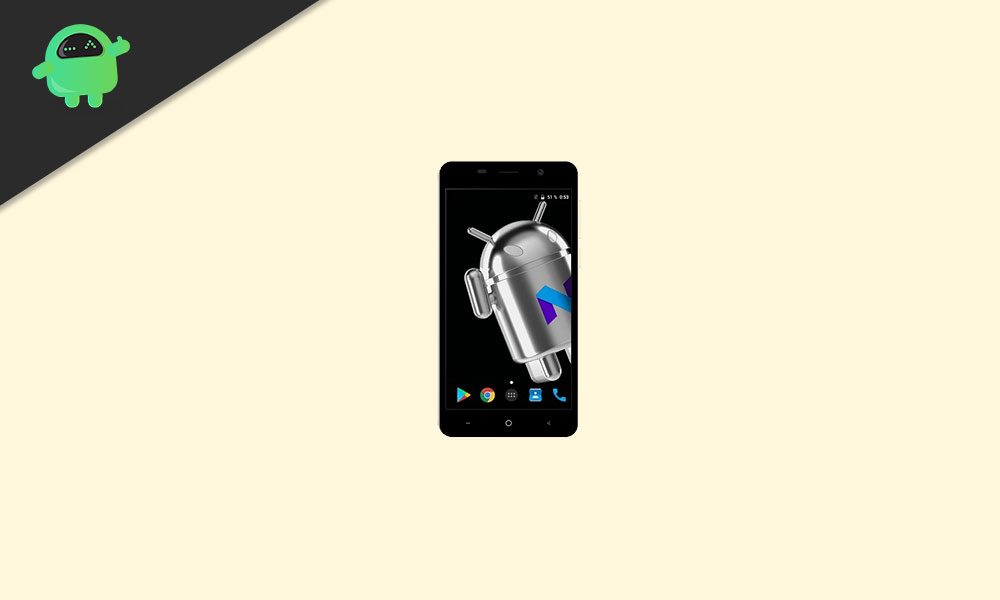

S-Tell M511

TWRP Recovery and its Advantages

TWRP stands for Team Win Recovery Project. It basically lets the user flash custom recovery files, firmware files, root files easily on their Android smartphones. The firmware and other zip files can be easily flashed by this tool.

Pre-Requirements:

The file and guide are supported for the S-Tell M511 model only. Don’t try it on other devices.
S-Tell M511 bootloader should be unlocked.
A PC/Laptop and a USB cable are required for this process.
Make sure to take a Full Backup of Device Data (No Root).
Download Magisk or SuperSU file for rooting. You can follow one method from below.
Charge your device battery to full.

Download Link:

TWRP Recovery for S-Tell M511
No Verity Opt Encrypt and VBMeta.img
Download SuperSU Zip – For root using SuperSU
Download Magisk Zip – For root using Magisk
Download Drivers: Android USB Driver | MTK USB Drivers
Download SP Flash Tool
Download ADB and Fastboot and install it on your PC
For scatter file, either extract the Stock ROM for S-Tell M511 or create scatter txt file

Disclaimer:

GetDroidTips will not be responsible for any kind of damage or error that occurs to your device while/after installing the files or following this guide. Make sure to take a complete backup before doing anything. Do this at your own risk.

Method 1: By Smartphone Flash Tools

Follow the instructions given down below to install TWRP on your phone (need scatter text file):

Full Guide to install TWRP Recovery on your Phone

Video Guide on How to Install TWRP Recovery on Mediatek using SP Flash tool

Method 2: ADB and Fastboot Tool

After downloading all the required files, drivers, and tools, follow the installation process.

First of all, enable the Developer Options and USB Debugging mode on your device.
Head over to the device Settings > System > About Phone > then tap on the Build Number for seven times to enable Developer options mode.
Now, go to the Developer options in the Settings menu and turn on the toggle to enable USB debugging.
Next, open the ADB & Fastboot folder on your computer. Then press and hold the Shift key and right mouse click to open the command window.
Turn off your device > Press and hold the Volume Up + Power button together for a few seconds to enter into Fastboot mode.
Connect your device with the PC via a USB cable and type the following code on the command windows and hit enter:

adb reboot bootloader

Now, your device is connected successfully as a fastboot device.
Type the following command and hit enter to check the fastboot device connected or not:

fastboot devices

Now, in order to install TWRP Recovery on your phone, type the following command and press enter:

fastboot flash recovery twrpname.img

To just boot, you can use the command fastboot boot twrpname.img
That’s it. You’ve successfully installed the TWRP Recovery on S-Tell M511 device. Now, you have to flash the Root.

What is Root? (Advantages)

Smartphone Rooting is the unofficial way to enable an administrator or superuser access to your device system and subsystem. Therefore, the user can easily tweak, change, edit, or delete system files and apps easily.

With the help of rooting, you can uninstall bloatware, increase device performance, reduce battery draining, install Xposed modules, and more. However, smartphone rooting will void the device warranty and you may not get software OTA updates anymore. Improper way of rooting can also brick your device easily. Therefore, make sure to follow the guide properly.

The advantage of Rooting:

You can get access to all files on your S-Tell M511, even the files which present in the root directory of your phone.
You can increase the performance of your S-Tell M511 by overclocking.
By rooting you can increase battery life by underclocking S-Tell M511.
Uninstall Bloatware on S-Tell M511.
You can block Ads on any Android applications such as Youtube and other game-related applications. Also Read: Top 5 Adblock Plus Alternatives for Android
By Rooting S-Tell M511, you can View, Edit or Delete any system file inside the root directory.
You can install the Xposed Framework and many Xposed module support.

Steps to Root S-Tell M511

Guide to Root S-Tell M511 via SuperSU

Guide to Root S-Tell M511 via Magisk

We assume that this full depth installation guide will be helpful to you. For any queries, feel free to ask in the comments below.
