In this guide, we will show you the real image of the ISP pinout and test point for the Xiaomi Redmi Note 6 Pro (tulip). By using the ISP PinOUT, you can easily restore the stock ROM, bypass FRP lock, or reset user data on your device via UFi Box. In this guide, we will also guide you on how to reboot into 9008 EDL Mode.
What is ISP PinOUT?
ISP or In-system programming also known as in-circuit serial programming (ICSP) for hardware that has a cross-reference of pins or contacts. By shorting the pins together, you can power or signal the logic board (motherboard) of an electronic device such as a mobile, computer. You will find the IS Pinout connection on the logic board of your device. Therefore, you will need to remove the back panel of the handset and follow the below image to locate the pinout.

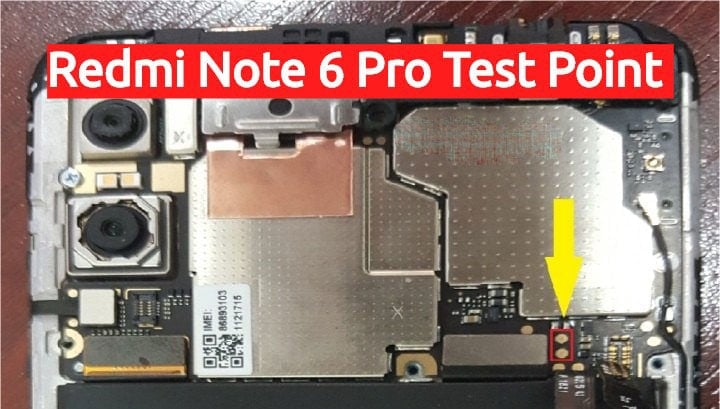

Xiaomi Redmi Note 6 Pro ISP Pinout Image:
How to Enter EDL Mode on Xiaomi Redmi Note 6 Pro (tulip)
Follow this instruction carefully to boot your device into EDL Mode (aka Emergency DownLoad Mode)
